Device Registration
Addition , Deletion | Address , Volume | Conversion |
|
|
 |
|

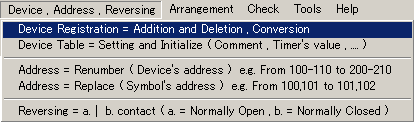

Click on the menu in the [ Program ] screen. |
|
|
|
h Addition , Deletion |
|
* Latch and diagnostic device aren't contained in the attached file.
Add it when you are necessary. |
|
 |
|
h Addition

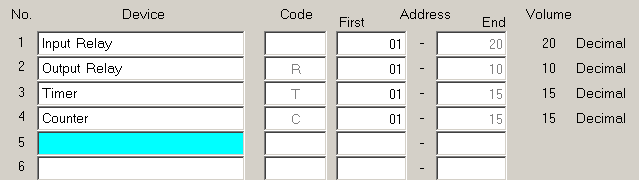

1. Click on the blank cell.

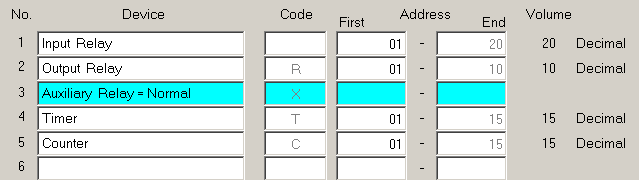

2. Select-click on the menu.
h Deletion
* Click on the existing device. |

Latch and diagnostic device can be used in a PLC mode. |
|
|
 |
|
|
|
h Address , Volume |
|
* Change the volume of the device when you are necessary. |
|
 |
|

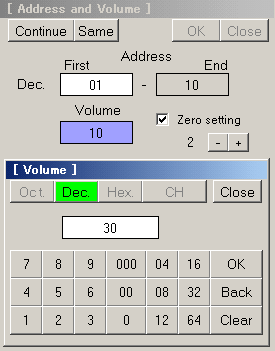

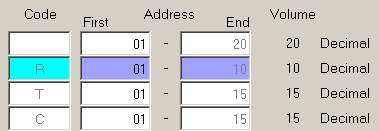

1. Click on the ( First ) Address.
2. Click on the [ First ] or [ Volume ] box.
3. Input each by the screen key.
* Continue button
It becomes the next address of the upper row.
* Same button
It becomes the volume of the upper row. |
|
|
 |
|
Maximum volume is 256 in the 1 row.
( Total volume is 5120 = 256 * 20 rows ) |
|
|
|
|
h Conversion |
|
* You can convert the program to the other mode, mutually. |
|
 |
|
|
e.g. From Relay circuit to MITSUBISHI's PLC - FX |

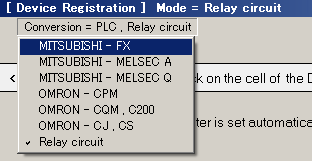

1. Click on the [ Conversion = PLC , Relay circuit
].
2. Select-click on the mode.
3. See the comment bar of software. |
 |
|
|
* If you use other PLC ( which is not MITSUBISHI and OMRON ), select the PLC of similar device. |
* The device's address can be set freely. ( Regardless of the PLC mode ) << Click here >> |
|
|
|
