Address = Renumber
Renumber  |  Device's code  |  PLC's address

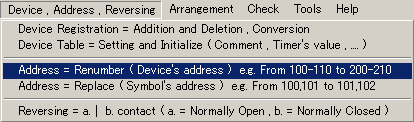

Click on the menu in the [ Program ] screen.

h Renumber

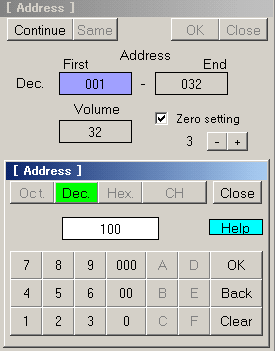

1. Click on the ( First ) Address.
2. See the comment bar of software.

h Device's code  ( Relay circuit only )

1. Click on the code.
2. See the comment bar of software.

h PLC's address
* If you use other PLC, select  the PLC of  similar device
* Device's address can be set  freely. ( Regardless of thePLC mode )
% address varies with the model-number of the PLC.
MITSUBISHI's PLC - FX - 1S
Input Relay X 0 % Octal
Output Relay Y 0 % Octal
Auxiliary Relay = Normal M 0 383 Decimal
Auxiliary Relay = Latch M 384 511 Decimal
Auxiliary Relay = Diagnostic M 8000 8255 Decimal
Timer T 0 62 Decimal
Counter C 0 31 Decimal
MITSUBISHI's PLC - FX - 1N
Input Relay X 0 % Octal
Output Relay Y 0 % Octal
Auxiliary Relay = Normal M 0 383 Decimal
Auxiliary Relay = Latch M 384 511 Decimal
Auxiliary Relay = Diagnostic M 8000 8255 Decimal
Timer T 0 199 Decimal
Counter C 0 199 Decimal
MITSUBISHI's PLC - FX - 2N
Input Relay X 0 % Octal
Output Relay Y 0 % Octal
Auxiliary Relay = Normal M 0 499 Decimal
Auxiliary Relay = Latch M 500 1023 Decimal
Auxiliary Relay = Diagnostic M 8000 8255 Decimal
Timer T 0 199 Decimal
Counter C 0 199 Decimal
MITSUBISHI's PLC - MELSEC - A
Input Relay X 0 % Hexadecimal
Output Relay Y 0 % Hexadecimal
Auxiliary Relay = Normal M 0 999 Decimal
Auxiliary Relay = Latch M 1000 2047 Decimal
Auxiliary Relay = Diagnostic M 9000 9255 Decimal
Timer T 0 255 Decimal
Counter C 0 255 Decimal
MITSUBISHI's PLC - MELSEC - Q
Input Relay X 0 % Hexadecimal
Output Relay Y 0 % Hexadecimal
Auxiliary Relay = Normal M 0 8191 Decimal
Auxiliary Relay = Latch L 0 8191 Decimal
Auxiliary Relay = Diagnostic SM 0 2047 Decimal
Timer T 0 2047 Decimal
Counter C 0 1027 Decimal
OMRON's PLC - CPM - 1A
Input Relay   0 CH 9 CH 12 bit
Output Relay   10 CH 19 CH 8 bit
Auxiliary Relay = Normal   200 CH 231 CH 16 bit
Auxiliary Relay = Latch HR 0 CH 19 CH 16 bit
Auxiliary Relay = Diagnostic   232 CH 255 CH 16 bit
Timer TIM 0 127 Decimal
Counter CNT 0 127 Decimal
* Timer and Counter can't set same address.
OMRON's PLC - CPM - 2A , 2C
Input Relay   0 CH 9 CH 12 bit
Output Relay   10 CH 19 CH 8 bit
Auxiliary Relay = Normal   20 CH 49 CH 16 bit
Auxiliary Relay = Normal   200 CH 227 CH 16 bit
Auxiliary Relay = Latch HR 0 CH 19 CH 16 bit
Auxiliary Relay = Diagnostic   228 CH 255 CH 16 bit
Timer TIM 0 255 Decimal
Counter CNT 0 255 Decimal
* Timer and Counter can't set same address.
OMRON's PLC - CQM1H
Input Relay   0 CH 15 CH 16 bit
Output Relay   100 CH 115 CH 16 bit
Auxiliary Relay = Normal   16 CH 89 CH 16 bit
Auxiliary Relay = Normal   116 CH 189 CH 16 bit
Auxiliary Relay = Latch HR 0 CH 99 CH 16 bit
Auxiliary Relay = Diagnostic   244 CH 255 CH 16 bit
Timer TIM 0 511 Decimal
Counter CNT 0 511 Decimal
* Timer and Counter can't set same address.
OMRON's PLC - C200
Input / Output Relay   0 CH 29 CH 16 bit
Input / Output Relay   300 CH 309 CH 16 bit
Auxiliary Relay = Normal   30 CH 235 CH 16 bit
Auxiliary Relay = Normal   310 CH 511 CH 16 bit
Auxiliary Relay = Latch HR 0 CH 99 CH 16 bit
Auxiliary Relay = Diagnostic   236 CH 255 CH 16 bit
Timer TIM 0 511 Decimal
Counter CNT 0 511 Decimal
* Timer and Counter can't set same address.
OMRON's PLC - CJ1
Input / Output Relay   0 CH 159 CH 16 bit
Auxiliary Relay = Normal W 0 CH 511 CH 16 bit
Auxiliary Relay = Latch H 0 CH 511 CH 16 bit
Auxiliary Relay = Diagnostic A 0 CH 447 CH 16 bit
Timer T 0 4095 Decimal
Counter C 0 4095 Decimal
OMRON's PLC - CS1
Input / Output Relay   0 CH 319 CH 16 bit
Auxiliary Relay = Normal W 0 CH 511 CH 16 bit
Auxiliary Relay = Latch H 0 CH 511 CH 16 bit
Auxiliary Relay = Diagnostic A 0 CH 447 CH 16 bit
Timer T 0 4095 Decimal
Counter C 0 4095 Decimal
